What is Crabil Manufacturing?

Founded in 2001, Crabil Manufacturing, Inc. is an ISO 9001:2008 certified job shop specializing in tight tolerance parts. Focused and dedicated employees, quality control processes and regularly updated manufacturing and CMM equipment have played an integral role in our success and growth. Additionally, we form lasting relationships with our clients and built a business based on referrals as a result.

Clients who want a one stop shop find it with Crabil. As a result of our established relationships with outside experts we are able to support our clients from conceptual design to finished assemblies without carrying the cost of these capabilities in our overhead.

description
ISO 9001:2008 Certified

  • Crabil has served the needs of a wide-range of clients:
  • US Military & Government Contractors
  • Medical/Dental
  • Aerospace
  • FFL Manufacturing
  • Power Generation
  • High-frequency Communication
  • Tool & die
  • Transportation
  • Process industries
  • Inventors

Developing a Manufacturing Solution

Developing a Manufacturing Solution
How we develop our manufacturing process.

Whether prototype work or production runs, at Crabil, we design a manufacturing solution that is efficient and consistently produces quality parts. We utilize multi-axis production techniques to reduce setup time and ultimately produce a higher quantity of quality parts faster. When short prototype runs result in larger production orders our experts work together to ensure the same level of quality conformance.

Manufacturing processMultiple step manufacturing process

Manufacturing a Quality Product

Manufacturing a Quality Product
How we manufacture our clients' design.

We are driven to manufacture quality parts that meet our clients’ specifications in a timely manner. Through our longstanding relationships with vendors we are able to source a wide variety of material in a short timeframe. Designs based on customer prints and/or models are programmed via MasterCam X9 and machine code. Any specialty tooling that isn’t in stock is ordered, and our team of machinists ensure that our clients’ designs are accurately brought to life by conducting in-process inspections.

When outside processes are called-out we have a network of providers that we work closely with to ensure the final quality and the timely completion of the product.

Let us know your production needs and we will work to provide the best solution for your company. Orders can be placed with scheduled completion dates or in a JIT or Kanban fashion. Additionally, Crabil can accommodate changing supply needs by adjusting the production schedule.

Manufacturing centersManufacturing centers

  • Crabil uses the following in house processes:
  • Five Axis Milling
  • Multi Axis Mill-Turn Lathes
  • Hardware install and Sub-Assembly Build Per-Print

View our list of manufacturing equipment that we currently use.

Quality Finish and Inspection

Quality Finish and Inspection
How we deliver a quality finished product.

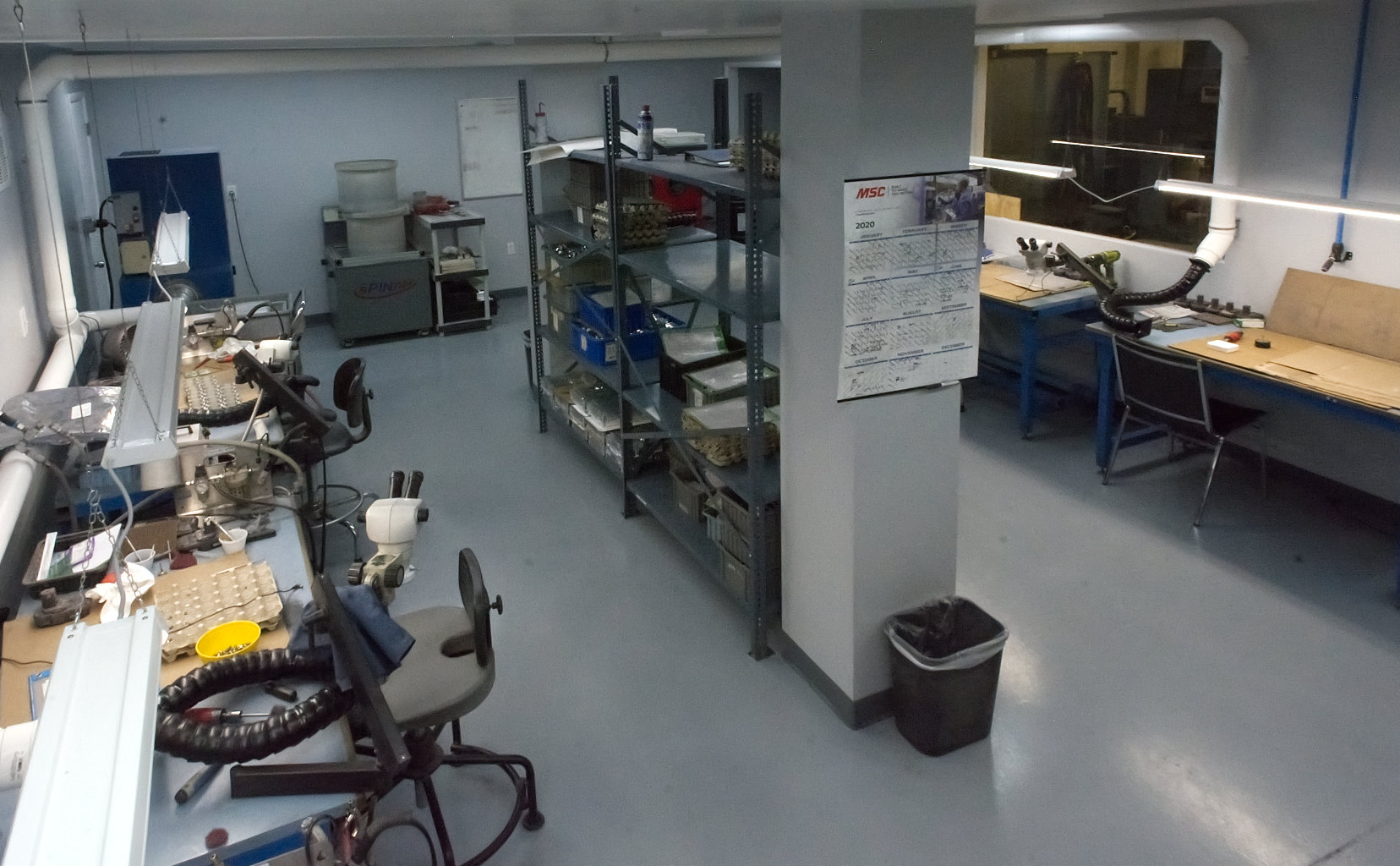

All parts are processed through the Finish Department to clean and prepare them for outside processing or final inspection and shipping. A variety of tools and techniques are used to produce uniform parts that meet the client’s product design. All manufactured parts are screened using high power optics by skilled technicians and cleaned using precision power tools. Parts requiring assembly or part-marking spend time on the bench and then move to inspection.

Finish DepartmentFinish Department

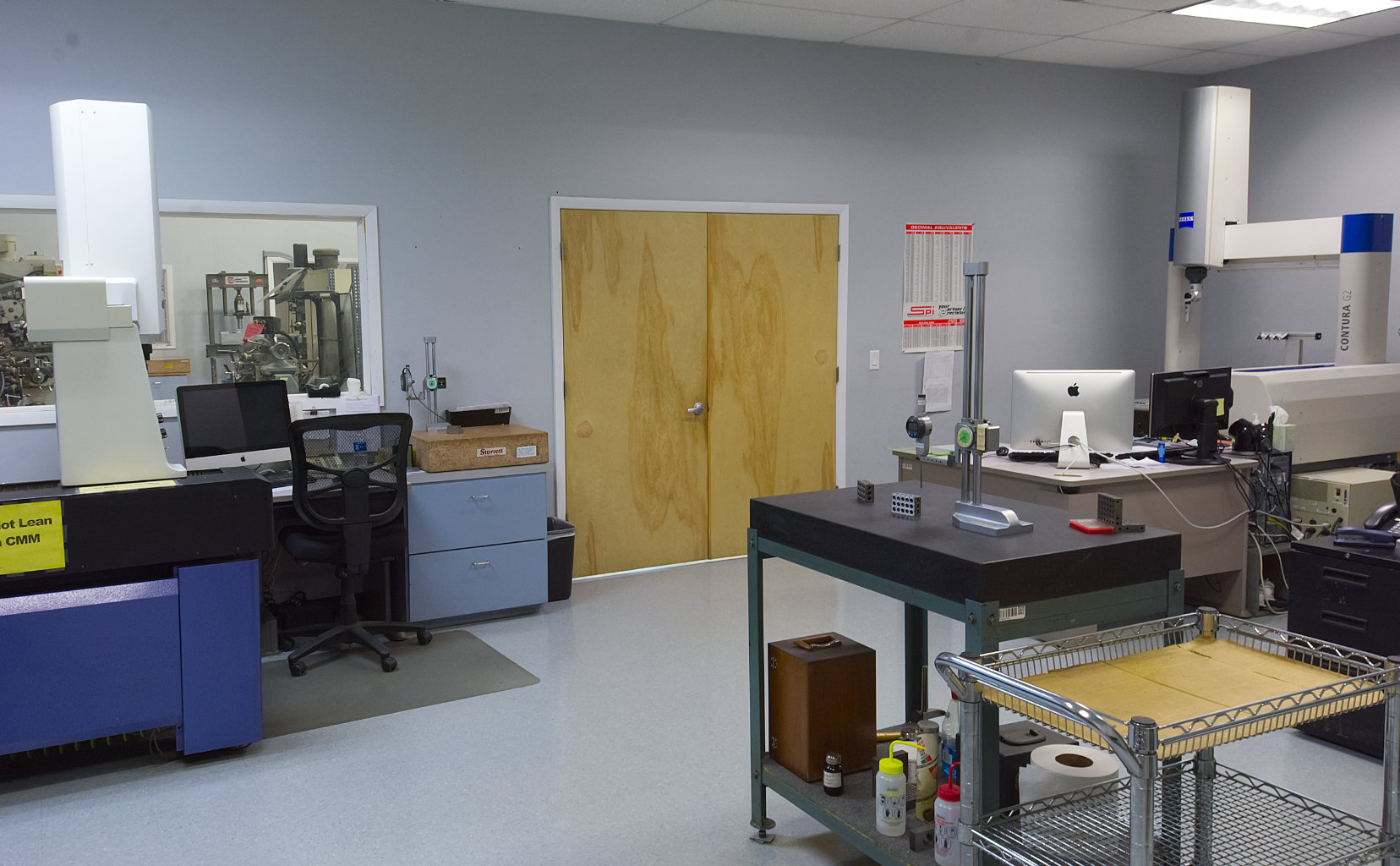

Parts are measured at set-up with a first article inspection, throughout production using in-process inspection, and at the end with a final inspection. Our Quality Department employs state of the art CMM to verify part conformance. Quality Assurance Provisions are specified by our clients via their purchase order. Crabil follows the acceptance sampling standard of ANSI/ASQ Z1.4-2008 Sampling Procedures for Inspection by Attributes.

The Quality Department is also employed by our clients as a third party inspection source to verify parts from their manufacturing facilities.

Quality DepartmentQuality Department

Equipment List

Quality Finish and Inspection

Equipment List for 2016

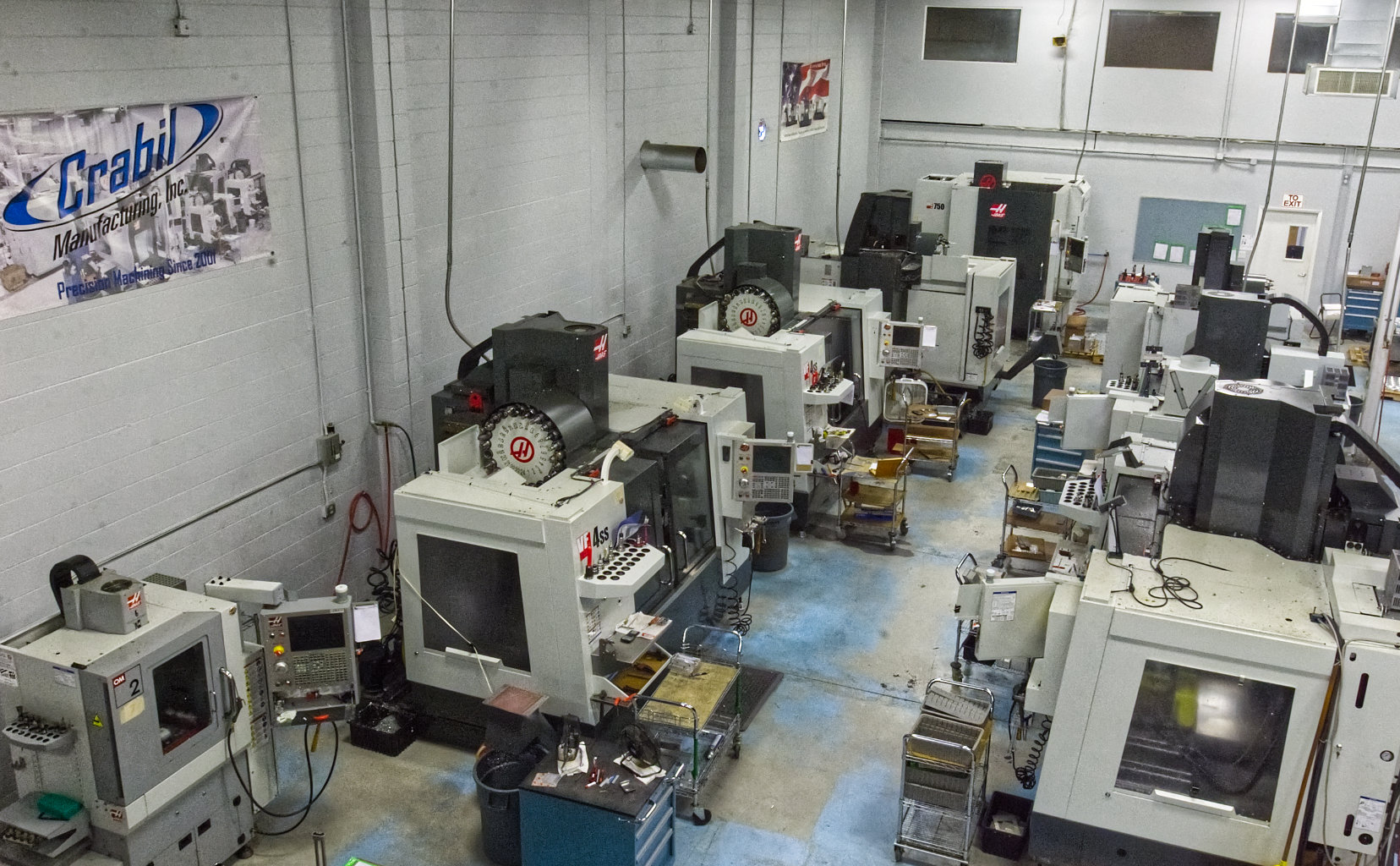

Milling Equipment
Machine
Qty – Date
Quantity and Date
Description
HAAS OM-2 Vertical Machine Center
1 – 2009
1 – 2009
12 X 10 X 12 (X, Y, Z) 30000 rpm, 5 hp Direct-Drive, High Speed Machining, 20-Tool Changer, Intuitive Renishaw Probing, Early Power Failure Detection
HAAS VF-2SS Vertical Machine Center
2 – 2011
2 – 2012
2 – 2011
2 – 2012
30 X 16 X 20 (X,Y,Z) 12000 rpm, 30 hp Direct-Drive, High Speed Machining, 25-Tool Changer, Full 4th Axis, Intuitive Renishaw Probing, Early Power Failure Detection
HAAS VF-4SS Vertical Machine Center
1 – 2013
2 – 2012
1 – 2013
2 – 2012
50 X 20 X 25 (X,Y,Z) 12000 rpm, 30 hp Direct-Drive, High Speed Machining, 25-Tool Changer, Full 4th Axis, Intuitive Renishaw Probing, Early Power Failure Detection
HAAS VF-4SS Vertical Machine Center
1 – 2016
1 – 2016
50 X 20 X 25 (X,Y,Z) 15000 rpm, 40 hp Direct-Drive, High Speed Machining, 40-Tool Changer, Full 5th Axis, Intuitive Renishaw Probing, Early Power Failure Detection
HAAS VF-6SS Vertical Machine Center
1 – 2009
1 – 2009
64 X 32 X 36 (X, Y, Z) 12000 rpm, 30 hp Direct-Drive, High Speed Machining, 40-Tool Changer, Full 4th Axis, Intuitive Renishaw Probing, Early Power Failure Detection
HAAS UMC-750 5-Axis Vertical Machine Center
2 – 2013
2 – 2013
30 X 22 X 20 (X,Y,Z) with Integrated 2-Axis Trunnion Rotary, 12000 rpm, 30 hp Direct-Drive, High Speed Machining, 40-Tool Changer, Intuitive Renishaw Probing, Early Power Failure Detection
Toyoda FH450S Horizontal Machine Center
3 – 2014
3 – 2014
23.6 X 23.6 X 23.6 (X,Y,Z) 15000 rpm, 30 hp High-Output, High Speed Machining, 300-Tool Changer, Full 4th Axis, Renishaw Probing, 48 Pallet FMS, Direct Scale Feedback
Lathe Equipment
Machine
Qty – Date
Quantity and Date
Description
Mori Seiki NL-1500Y Lathe
1 – 2006
1 – 2010
1 – 2006
1 – 2010
10.2 X 23.2 X 3.9 ± 2 (X,Z,Y) 6000 rpm, 20 hp Main Spindle, 6000 rpm Rotary Tooling, 12-Tool Turret, Max Turning Diameter 14, Max Length 20.2
Mori Seiki NL-1500SY Lathe
1 – 2010
1 – 2010
10.2 X 23.2 X 3.9 ± 2 (X,Z,Y) 6000 rpm, 20/15 hp Main/Sub Spindle, 6000 rpm, 15 hp Secondary Spindle, 6000 rpm Rotary Tooling, 12-Tool Turret, Max Turning Diameter 14, Max Length 20.2
Mori Seiki NL-2500SY Lathe
1 – 2012
1 – 2012
10.2 X 53.0 X 3.9 ± 2 (X,Z,Y) 4000/6000 rpm, 24/15 hp Main/Sub Spindle, 6000 rpm Rotary Tooling, 12-Tool Turret, Max Turning Diameter 14, Max Length 51.1
Tsugami SS20 Super Swiss Lathe
1 – 2009
1 – 2009
20mm Max Turning Diameter, 8000 rpm Main/Sub, 6000 rpm Rotary Tooling, 24-Tool Stations, High Pressure Coolant, Auto Loading Bar Feeder
Inspection Equipment
Machine
Qty – Date
Quantity and Date
Description
Zeiss Contura G2 7/7/6 RDS
1 – 2013
1 – 2013
DCC Programmable Coordinate Measuring Machine
Measuring ranges of X = 700, Y = 700, and Z = 600 mm.
Includes the VAST XXT articulating probe holder allowing scanning of features in all angular positions; self-centering probing function, mechanical collision protection, and automatic counterbalancing every time the stylus is changed.
Mitutoyo Crysta Plus Manual CMM
1 – 2004
1 – 2004
Manual Coordinate Measuring Machine
20 X 28 X 16 (X, Y, Z),Resolution .00002”, Accuracy .00006”
volumetric error including probe.
Mitutoyo PH-A14 Profile Projector
1 – 2012
1 – 2012
Profile Projector, 10X – 20X magnification
Tool Maker’s Scope

.0001 accuracy
Miscellaneous Inspection Equipment

Dial Calipers, Digital Calipers, Gage Pins, Bore Gages, Height Gages, Radius Gages, Thread Gages, Dial Indicators (.001, .0001, .00005), Drop Indicators, Sine Plates, Micrometers, Anvil Micrometers, Blade Micrometers, Depth Micrometers, Disc Micrometers, ID Micrometers, and Thread Micrometers.
